SPECIFIIONS:

PISTON TYPES:

Since the piston of the internal combustion engine works under the conditions of high temperature, high pressure and high load, the requirement for the piston is relatively high, so the classifiion of the piston of the internal combustion engine is mainly discussed.

1. According to the fuel used, it can be divided into gasoline engine piston, diesel engine piston and natural gas piston.

2. According to the material of the manufacturing piston, it can be divided into cast iron piston, steel piston, aluminum alloy piston and combined piston.

3. According to the process of manufacturing the piston blank, it can be divided into gravity casting piston, squeeze casting piston and forging piston.

4. According to the working condition of the piston, it can be divided into two egories: non-boost piston and booster piston.

5. According to the purpose of the piston, it can be divided into car piston, truck piston, motorcycle piston, marine piston, tank piston, tractor piston, lawn mower piston and so on.

PISTON TYPES

Piston skirt and crown

Consist of a steel piston head and an aluminium piston skirt which have a moveable connection to each other via the piston pin. Due to great strength and low wear and tear, it is possible to achieve low exhaust emission values for diesel engines that are subjected to particularly high loads.

Piston comes with bushes
In order to make it possible to increase the loads to which the pin boss can be subjected, this piston has pin boss bushes that are made of a special material

Alfin Pistons
Alfin is inserted within the ring grooves when casting. Alfin is made of special austenitic cast iron. It is tightly bonded metallically to piston body and counteracts the wear in the top or second ring groove.

Cooling channel piston
Cooling channel piston effectively reduce piston body working and groove land temperature under high temperature working condition.

PISTON SURFACE TREATMENT

Piston with Tin coating
Tin is coated by exectroanalysis or heat dipping at thickness between 0.001 and 0.003mm. Tin is characterized as soft and oil-friendly which improves running-in efficiency of piston and liner.

Pistons with Phosphating
The phosphating is aimed to improve initial running-in performance. The phosphating layer is easy to wear off and helpful to improve running-in.

Piston roof anodizing
The piston roof is anodized by electrobath, forming thin layer of Al O . This treatment will improve heat resistance, heat conductivity and anticorrosion, it helps prevent piston roof burn-up.

Graphipe printing and spratyed at piston skirt
Graphite is characterized as good lubriing, which helps lubricant adhering to coating surface.

Related Products

1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.

2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.

3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.

4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.

5.How to buy with you?
You can use "Chat now!" or email to us.

6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.

7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.

8.What information should I let you know if I want to get a quotation?

To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

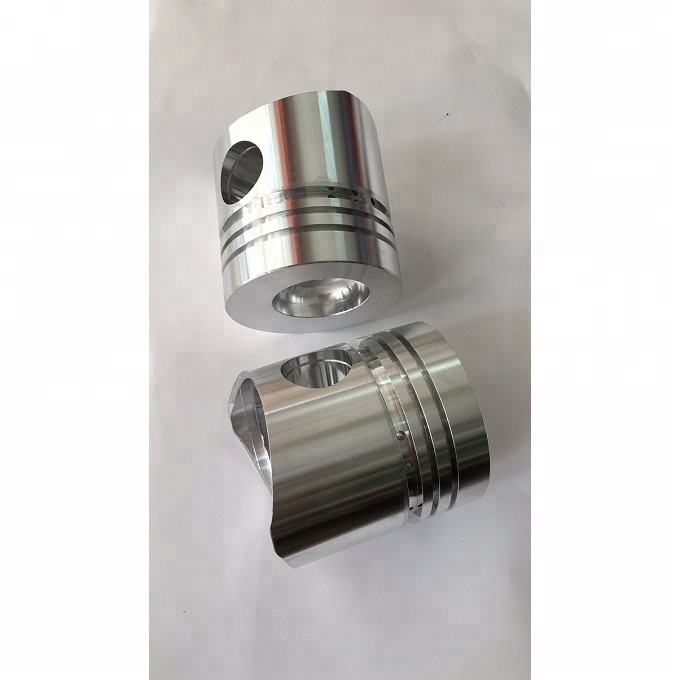

ENGINE PISTON PICTURE AS BELOW:

WELCOME YOUR ENQUIRY, WE WILL ALWAYS BE HERE SERVICE FOR YOU!

Guangzhou Teikuko Auto Parts Co.,ltd is loed in Guangzhou Baiyun District.

Our company with the famous brand JTP,  specilly deal with production, sales and trading of Japan heavy diesel controduction machinary engine overhaul parts.

The main products include : engine cylinder liner, piston, pin, pistion ring, head gasket, overhaul gasket kit, engine bearing, intake valve & exhaust valve, valve seat & guide, oil nozzle & plunger...At present, we have more than 300 kinds of engine models,.

Products from Teikuko spread all over the country and abroad. Our Philosophy is CUSTOMER FIRST, QUALITY FIRST, MUTUAL BENIFIT & COMMON DEVELOPMENT. We seek every possibility to provide our clients with high-quality proucts.
