Truck/ Car Diesel Piston for Mitsubishi 6D22 Long Warranty Parts
Art Piston Japan ME052588
SPECIFIIONS:
Engine model: 6D22
|
| Part No: ME152652 |
| Condition: New |
| Place of origin : CHINA |
| Payment term :T/T , Western Union |
| Packing : As request or standard packing |
| Delivery time : Based on order |
| Means of transport :By sea/air, DHL |
PARAMETER OF PISTON :
| CODE NO. | MH0050X | MODEL | C50 |
| CYLINDER NO. | 4 | HEAD TYPE NO. | 4 |
| TOTAL HEIGHT | 50.5 mm | COMP. HEIGHT | 24.5 mm |
| CYLINDER DIA. | 39 mm |
| RING | COMP. | OIL |
| 1.2-2 mm | 2.5-1 mm |
| PIN | DIA. | LENGTH |
| 13 mm | 31 mm |
| MOQ | 1000PCS |
REMARKS:
1, Advanced technology, superb quality, reliability and honesty,
satisfactory service
2, Reasonable price.
3, Considerate after-sales service.
4, Safe and fair cooperation with us.
5, We strictly adhere to OEM quality. Same quality and service in
domestic and overseas markets.
PISTON SURFACE TREATMENT
Piston with Tin coating
Tin is coated by exectroanalysis or heat dipping at thickness
between 0.001 and 0.003mm. Tin is characterized as soft and
oil-friendly which improves running-in efficiency of piston and
liner.
Pistons with Phosphating
The phosphating is aimed to improve initial running-in performance.
The phosphating layer is easy to wear off and helpful to improve
running-in.
Piston roof anodizing
The piston roof is anodized by electrobath, forming thin layer of
Al O . This treatment will improve heat resistance, heat
conductivity and anticorrosion, it helps prevent piston roof
burn-up.
Graphipe printing and spratyed at piston skirt
Graphite is characterized as good lubriing, which helps lubricant
adhering to coating surface.
Related Products
PRODUCT RANGE:
| OEM No. | Model | CYL DIA | OD*L |
| AA100-11-101 | TOWNER | 70 | 18 60 |
| | PRIDE | 68 | 20 52 |
| | PRIDE | 71 | 20 52 |
| OKKY1-11-SAO | PRIDE 1.3 | 71 | 20 52 |
| OK480-11-SAO | K2700 | 92 | 31.75 75 |
| OK6ZI-II-SAO | JS | 94.5 | 30 76 |
| OK4Y2-11SAO | K3600AL | 100 | 34 82 |
| K4YO-11-SAO | K3500AL | 100 | 34 82 |
| OK7Z1-11-SAO | JT3.0 | 98 | 30 79 |
| | DOHC | 78 | 20 61 |
| | SOHC | 78 | 20 61 |
| OK7ZO-11-SAO | K2400 | 92 | 28 75 |
| OEM No. | Model | CYL DIA | OD*L |
| 23410-02700 | ATOS 1.0 | 66 | 17 46.5 |
| 23410-02470 | ATOS 1.1 | 67 | 17 46.5 |
| 23410-22400 | ACCENT/G4EB | 75.5 | 18 47.5 |
| 23410-22612 | VERNA/G4EK | 75.5 | 18 47.5 |
| | 1.6 | 77.5 | 20 59 |
| 23410-26111 | ELANTRA 1.6/G4ED | 76.5 | 18 47 |
| | 1.8 | 82 | 20 59 |
| | 2 | 82 | 20 59 |
| | SONATA 2.0 NEW | 86 | |
| | SONATA 2.4 NEW | 88 | |
| | SANTE FE 3CAAD | 88 | |
| | 69.6 | 69.5 | 23 57 |
| | 79.47 | 79.5 | 26 64 |
| 23410-41200 | K1/D4AF | 104 | 34 84 |
| 23410-42703 | D4BB | 91.1 | 29 75 |
| 23410-42411 | D4BA | 91.1 | 29 75 |
| 23410-42544/42411 | D4BH | 91.1 | 29 75 |
| | T1 | 91.1 | 29 74 |
| 23410-22260 | G4EH | 71.5 | 18 47.3 |
| 23410-22511 | ACCENT 1.5 | 75.5 | 18 47 |
| 23410-2B000 | AVANTE 1.6 | 77 | 18 52 |
| VECTRA 1.6 | F16D | 79 | 18 55 |
| 23410-27924 | ACCENT/D4EA | 83 | 28 65 |
| | ELANTRA 1.8 | 81 | 20 49 |
| | SONATA 2.0 | 86 | 21 60 |
| | SONATA 2.4 | 88 | 21 60 |
OUR FACTORY:
Guangzhou Teikuko Auto Parts Co., Ltd. was founded in 1997,
specializes in producing cylinder liners, piston products, covering
more than 30 brands, more than 300 kinds of engine type, widely
used in various heavy diesel engine (such as Mitsubishi, Isuzu,
Nissan, Hino, BMW, Mercedes, Cummins, etc.), Our company has an
independent development department, quality control department and
laboratory, has a number of highly qualified management personnel
and research and development, innovation and strong, All of our
products has passed ISO9001: 2000 quality system certifiion. We
have now formed the production capacity of annual output value of
500 000 Cylinder / piston, more than 95 percent of products
exported to Southeast Asia, Middle East, South America, Africa and
other regions, is your reliable partner.
OUR SERVICE:
1.OEM Manufacturing welcome:Product,Package...
2.Sample order.
3.We will reply you for your inquiry in 24 hours.
4.After sending,we will track the products for you once every two
days
5.If you have any questions about the problem,contact with us,we
will offer the solve way for you.
6.More payment method for your choice
WHY CHOOSE US?
1. As the 2ND-largest Factory in China, we will help you to cut
down cost.
2. More professional with more than 18 years' experience, mainly
doing OEM.
3. Full piston varieties, Japanese, Korean, European, American,
Chinese engine, etc.
4. Diameter of pistons from 30mm-500mm
5. Good packing and short delivery time

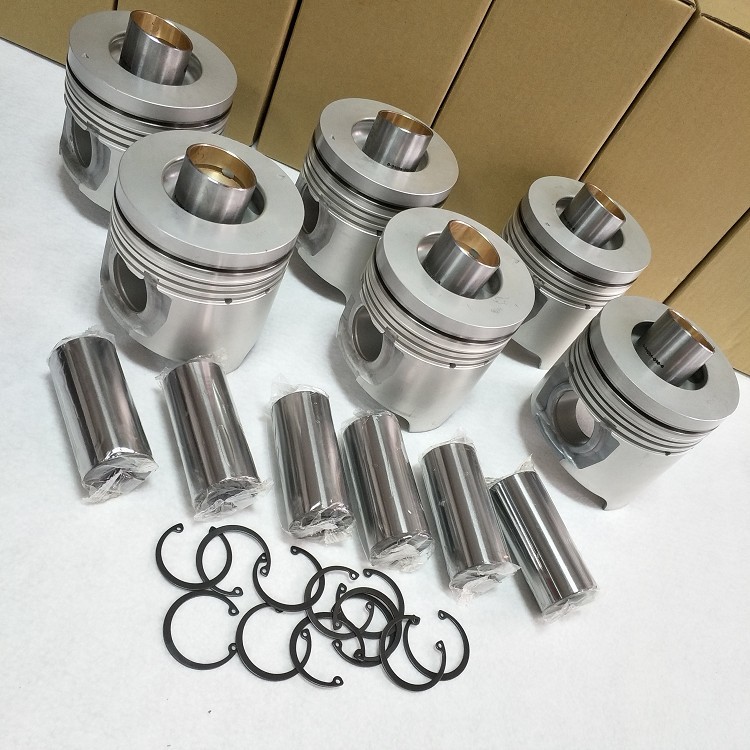

ENGINE PISTON PICTURE AS BELOW:
WELCOME YOUR ENQUIRY, WE WILL ALWAYS BE HERE SERVICE FOR YOU!
