Diesel engin Piston for Mitsubishi 4D32(K1) Vehicle H3A Liner Kit
ME012174 ME018274
SPECIFIIONS:
| Item Name | Piston |
| Engine Type |
Diesel Engine |
| Engine Model | 4D32 |
| Cylinder Diameter | 104.00MM |
| Total Length | 110.70MM |
Piston Features | tinned,alfin |
| OEM | ME012174 |
CYL. NO | 4 |
Working life | 1 Years |
PARAMETER OF PISTON :
| CODE NO. | MH0050X | MODEL | C50 |
| CYLINDER NO. | 4 | HEAD TYPE NO. | 4 |
| TOTAL HEIGHT | 50.5 mm | COMP. HEIGHT | 24.5 mm |
| CYLINDER DIA. | 39 mm |
| RING | COMP. | OIL |
| 1.2-2 mm | 2.5-1 mm |
| PIN | DIA. | LENGTH |
| 13 mm | 31 mm |
| MOQ | 1000PCS |
REMARKS:
1, Advanced technology, superb quality, reliability and honesty,
satisfactory service
2, Reasonable price.
3, Considerate after-sales service.
4, Safe and fair cooperation with us.
5, We strictly adhere to OEM quality. Same quality and service in
domestic and overseas markets.
PISTON SURFACE TREATMENT
Piston with Tin coating
Tin is coated by exectroanalysis or heat dipping at thickness
between 0.001 and 0.003mm. Tin is characterized as soft and
oil-friendly which improves running-in efficiency of piston and
liner.
Pistons with Phosphating
The phosphating is aimed to improve initial running-in performance.
The phosphating layer is easy to wear off and helpful to improve
running-in.
Piston roof anodizing
The piston roof is anodized by electrobath, forming thin layer of
Al O . This treatment will improve heat resistance, heat
conductivity and anticorrosion, it helps prevent piston roof
burn-up.
Graphipe printing and spratyed at piston skirt
Graphite is characterized as good lubriing, which helps lubricant
adhering to coating surface.
Related Products
PAYMENT ATTENTION PLEASE:
One set for one engine repairing .
Your goods will be sent out in 1- 3 days after we received your
payment ,
Your goods will be packed into the neutral paper carton , any
requirement on packing ,please leave us message
Please fill in your detailed address and phone number for
international express when you placing the order
More photos and detals , welcome to chat with us online
PRODUCT RANGE:
| OEM No. | Model | CYL DIA | OD*L |
| AA100-11-101 | TOWNER | 70 | 18 60 |
| | PRIDE | 68 | 20 52 |
| | PRIDE | 71 | 20 52 |
| OKKY1-11-SAO | PRIDE 1.3 | 71 | 20 52 |
| OK480-11-SAO | K2700 | 92 | 31.75 75 |
| OK6ZI-II-SAO | JS | 94.5 | 30 76 |
| OK4Y2-11SAO | K3600AL | 100 | 34 82 |
| K4YO-11-SAO | K3500AL | 100 | 34 82 |
| OK7Z1-11-SAO | JT3.0 | 98 | 30 79 |
| | DOHC | 78 | 20 61 |
| | SOHC | 78 | 20 61 |
| OK7ZO-11-SAO | K2400 | 92 | 28 75 |
| OEM No. | Model | CYL DIA | OD*L |
| 23410-02700 | ATOS 1.0 | 66 | 17 46.5 |
| 23410-02470 | ATOS 1.1 | 67 | 17 46.5 |
| 23410-22400 | ACCENT/G4EB | 75.5 | 18 47.5 |
| 23410-22612 | VERNA/G4EK | 75.5 | 18 47.5 |
| | 1.6 | 77.5 | 20 59 |
| 23410-26111 | ELANTRA 1.6/G4ED | 76.5 | 18 47 |
| | 1.8 | 82 | 20 59 |
| | 2 | 82 | 20 59 |
| | SONATA 2.0 NEW | 86 | |
| | SONATA 2.4 NEW | 88 | |
| | SANTE FE 3CAAD | 88 | |
| | 69.6 | 69.5 | 23 57 |
| | 79.47 | 79.5 | 26 64 |
| 23410-41200 | K1/D4AF | 104 | 34 84 |
| 23410-42703 | D4BB | 91.1 | 29 75 |
| 23410-42411 | D4BA | 91.1 | 29 75 |
| 23410-42544/42411 | D4BH | 91.1 | 29 75 |
| | T1 | 91.1 | 29 74 |
| 23410-22260 | G4EH | 71.5 | 18 47.3 |
| 23410-22511 | ACCENT 1.5 | 75.5 | 18 47 |
| 23410-2B000 | AVANTE 1.6 | 77 | 18 52 |
| VECTRA 1.6 | F16D | 79 | 18 55 |
| 23410-27924 | ACCENT/D4EA | 83 | 28 65 |
| | ELANTRA 1.8 | 81 | 20 49 |
| | SONATA 2.0 | 86 | 21 60 |
| | SONATA 2.4 | 88 | 21 60 |
OUR FACTORY:
Guangzhou Teikuko Auto Parts Co., Ltd. was founded in 1997,
specializes in producing cylinder liners, piston products, covering
more than 30 brands, more than 300 kinds of engine type, widely
used in various heavy diesel engine (such as Mitsubishi, Isuzu,
Nissan, Hino, BMW, Mercedes, Cummins, etc.), Our company has an
independent development department, quality control department and
laboratory, has a number of highly qualified management personnel
and research and development, innovation and strong, All of our
products has passed ISO9001: 2000 quality system certifiion. We
have now formed the production capacity of annual output value of
500 000 Cylinder / piston, more than 95 percent of products
exported to Southeast Asia, Middle East, South America, Africa and
other regions, is your reliable partner.
1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.
2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some
manufacturers.
3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.
4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.
5.How to buy with you?
You can use "Chat now!" or email to us.
6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.
7.If out of stock, how much time do you need to transfer from
factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan
if out of stock.
8.What information should I let you know if I want to get a
quotation?
To get an accurate quotation, please let us know the exact part
name, quantity, quality level and trade terms like EXW, FOB and so
on. More details provided will help.

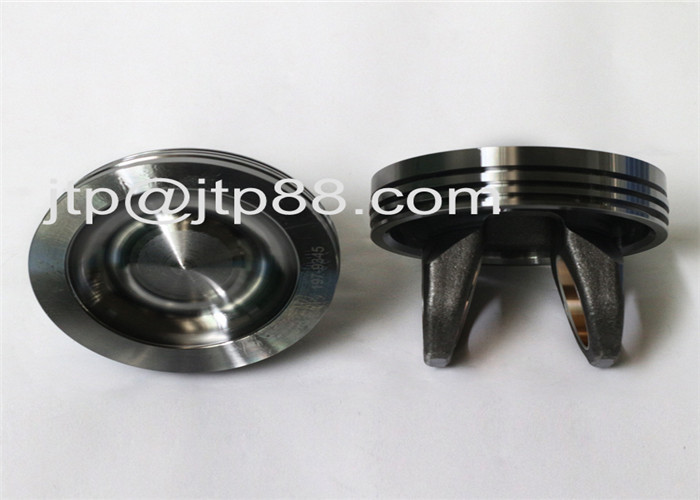

ENGINE PISTON PICTURE AS BELOW:
WELCOME YOUR ENQUIRY, WE WILL ALWAYS BE HERE SERVICE FOR YOU!
