Customized Packing Acceptable Piston ring 6G74 Cylinder Piston Ring MD300569 MD369575

SPECIFIIONS:

NOTE:

We are a wholesaler with our own factory.

We can produce any your design.

We have strict quality control system, good reputation in the market.

We have big discount fro forwarder (long-tern contract).

Perfessional work team and quick service.

The force acting on the piston ring is the gas pressure,the ring's own elastic force,the inertial force of the ring reciproing motion,the friction between the ring and the cylinder and the ring groove,as shown in the figure.Due to these forces,the ring will produce basic motions such as axial motion,radial motion,and rotary motion.In addition,due to its motion characteristics,the piston ring is accompanied by irregular movement,and inevitably,floating and axial vibrations caused by axial irregular motion,radial irregular motion and vibration,twisting motion,and the like are inevitable.These irregular movements often prevent the piston ring from functioning.When designing the piston ring, it is necessary to give full play to the favorable movement and control the unfavorable side.

THERMAL CONDUCTIVITY:

The high heat generated by the combustion is transmitted to the cylinder wall through the piston ring,so that it can function as a cooling piston.The heat radiated from the piston ring to the cylinder wall can generally reach 30-40% of the heat on the top of the piston.

AIR TIGHTNESS:

The first function of the piston ring is to maintain a seal between the piston and the cylinder wall to control leakage to a minimum.This effect is mainly borne by the gas ring,that is,the engine is controlled to minimize the leakage of compressed air and gas under any operating conditions to improve the thermal efficiency:to prevent the cylinder and the piston or the cylinder and the ring from being caused by the air leakage.Killing:preventing malfunction caused by deterioration of lubriing oil,and the like.

OIL CONTROL:

The second function of the piston ring is to properly scrape off the oil adhering to the cylinder wall and maintain normal fuel consumption.When the supplied lubriing oil is excessive,it will be sucked into the combustion chamber to increase the fuel consumption,and the carbon deposit generated by the combustion has a very bad influence on the engine performance.

OUR FACTORY:

Guangzhou Teikuko Auto Parts Co., Ltd. was founded in 1997, specializes in producing cylinder liners, piston products, covering more than 30 brands, more than 300 kinds of engine type, widely used in various heavy diesel engine (such as Mitsubishi, Isuzu, Nissan, Hino, BMW, Mercedes, Cummins, etc.), Our company has an independent development department, quality control department and laboratory, has a number of highly qualified management personnel and research and development, innovation and strong, All of our products has passed ISO9001: 2000 quality system certifiion. We have now formed the production capacity of annual output value of 500 000 Cylinder / piston, more than 95 percent of products exported to Southeast Asia, Middle East, South America, Africa and other regions, is your reliable partner.

THE SERVICES WE CAN PROVIDE:

PISTON RING TYPES:

DESTRIPTION:

1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.

2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.

3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.

4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.

5.How to buy with you?
You can use "Chat now!" or email to us.

6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.

7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.

8.What information should I let you know if I want to get a quotation?

To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

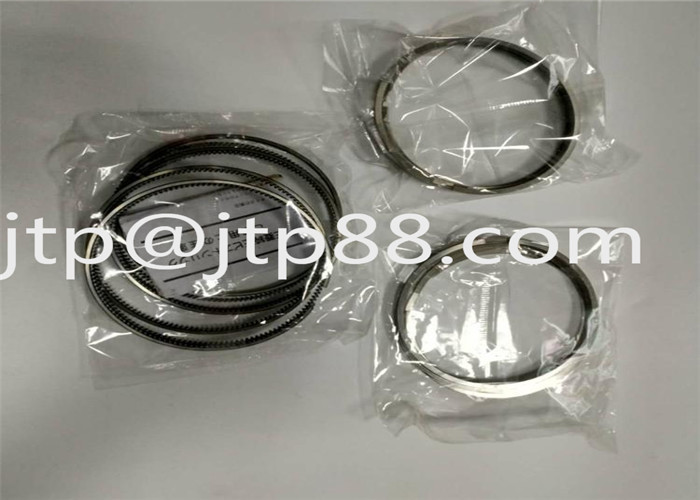

PISTON RING PICTURE AS BELOW:

Guangzhou Teikuko Auto Parts Co.,ltd is loed in Guangzhou Baiyun District.

Our company with the famous brand JTP,  specilly deal with production, sales and trading of Japan heavy diesel controduction machinary engine overhaul parts.

The main products include : engine cylinder liner, piston, pin, pistion ring, head gasket, overhaul gasket kit, engine bearing, intake valve & exhaust valve, valve seat & guide, oil nozzle & plunger...At present, we have more than 300 kinds of engine models,.

Products from Teikuko spread all over the country and abroad. Our Philosophy is CUSTOMER FIRST, QUALITY FIRST, MUTUAL BENIFIT & COMMON DEVELOPMENT. We seek every possibility to provide our clients with high-quality proucts.
