Diesel Motor Part Piston SM Piston in machinery engines For Yanmar
105mm
SPECIFIIONS:
| Engine model | SM |
| part number | - |
| Appliion | Yanmar tractor, excavator, forklift, skid steer engines |
| Cyl NO | 4 |
| Material | AL |
| package | natural package |
| Cylinder Diameter | 104mm |
| Stock goods or not | Stock |
SHIPPINGA AND SERVICE :
| Packaging | Carcon box, wooden box, or as customers' requirements |
| Shiping way | by express, by air,by sea |
| Principle | for small order, we can only accept 100% in asvance |
| substanitial order 50% advanced payment can be accepted |
| shipping at any port in China, depends on negotiation |
| Production time | after receiving the payment(usually takes 3 days),we prepare the
goods for you |
| Delivery time | depends on the shipping way |
REMARKS:
1, Advanced technology, superb quality, reliability and honesty,
satisfactory service
2, Reasonable price.
3, Considerate after-sales service.
4, Safe and fair cooperation with us.
5, We strictly adhere to OEM quality. Same quality and service in
domestic and overseas markets.
PISTON TYPES
Piston skirt and crown
Consist of a steel piston head and an aluminium piston skirt which
have a moveable connection to each other via the piston pin. Due to
great strength and low wear and tear, it is possible to achieve low
exhaust emission values for diesel engines that are subjected to
particularly high loads.
Piston comes with bushes
In order to make it possible to increase the loads to which the pin
boss can be subjected, this piston has pin boss bushes that are
made of a special material
Alfin Pistons
Alfin is inserted within the ring grooves when casting. Alfin is
made of special austenitic cast iron. It is tightly bonded
metallically to piston body and counteracts the wear in the top or
second ring groove.
Cooling channel piston
Cooling channel piston effectively reduce piston body working and
groove land temperature under high temperature working condition.
PISTON SURFACE TREATMENT
Piston with Tin coating
Tin is coated by exectroanalysis or heat dipping at thickness
between 0.001 and 0.003mm. Tin is characterized as soft and
oil-friendly which improves running-in efficiency of piston and
liner.
Pistons with Phosphating
The phosphating is aimed to improve initial running-in performance.
The phosphating layer is easy to wear off and helpful to improve
running-in.
Piston roof anodizing
The piston roof is anodized by electrobath, forming thin layer of
Al O . This treatment will improve heat resistance, heat
conductivity and anticorrosion, it helps prevent piston roof
burn-up.
Graphipe printing and spratyed at piston skirt
Graphite is characterized as good lubriing, which helps lubricant
adhering to coating surface.
Related Products.
ALSO BUSINESS ENGINE PARTS AS FOLLOW:
1.Piston/piston ring/piston pin/Cylinder Liner
2.Engine bearing/valve/guide/seat/thrust/gasket set
3.Gasket head/ cylinder head/ cylinder block/ cylinder liner
4.Crankshaft/camshaft/con rod/
5.Fuel pump/ oil pump/water pump
6.Starter/ generator/alternator
7.Injector/turbocharger
OUR ADVANTAGE:
1. High quality and competitive price.
2. Long life span, good sales-after service.
3. 100% new, strict inspection & test.
4. Standard export packing.
5. One year quality warranty.
6. Have strong stock, small order is acceptable
7. Various kinds are selectable with different car models.
8. Improve power and increase torque
9. Improve fuel economy and reduce fuel consumption
10. Reduce waste emissions and reduce environmental pollution

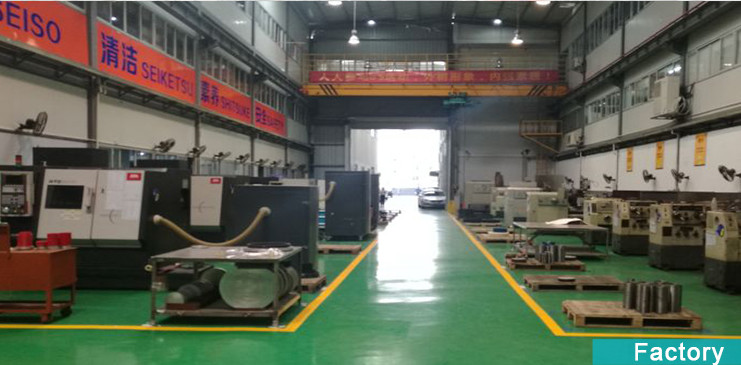

OUR FACTORY:
PRODUCT RANGE:
| KOMASU | S6D102 | 6735-31-2110 | 6 | 102 | 105.3 |
| KOMASU | 6D105 | 6137-31-2111 | 6 | 105 | 107.6 |
| KOMASU | S6D105 | 6136-31-2111 | 6 | 105 | 107.6 |
| KOMASU | S6D108 | 6222-31-2116 | 6 | 108 | 113.8 |
| KOMASU | S6D110 | | 6 | 110 | 116.2 |
| KOMASU | S6D125 | 6150-31-2112 | 6 | 125 | 131.1 |
| KOMASU | S6D125(T) | 6151-31-2171 | 6 | 125 | 131.1 |
| KOMASU | NH220 | 6620-31-2010 | 6 | 130 | 158.7 |
| KOMASU | 4D120 | 6113-31-2110 | 4 | 120 | 135 |
| KOMASU | 4D130 | 6114-31-2111 | 4 | 130 | 135 |
| CUMMINS | 6BT145 | | 6 | 102 | 105.3 |
| CUMMINS | 6BT153 | | 6 | 102 | 105.3 |
| CUMMINS | 6BTA | 3907156 | 6 | 102 | 105.3 |
| CUMMINS | 6BTAA-7790 | | 6 | 102 | 105.3 |
| CUMMINS | 6BTAA-P2304*4 | | 6 | 102 | 105.3 |
| CUMMINS | 6CT210 | 3923163 | 6 | 114 | 120.4 |
| CUMMINS | 6CT240 | 3923164 | 6 | 114 | 120.4 |
| CUMMINS | 6CT-3917707 | 3917707 | 6 | 114 | 120.4 |
| CUMMINS | 6CT-3925878 | 3925878 | 6 | 114 | 120.4 |
| CUMMINS | NT855 | 3048650 | 6 | 140 | 159.4 |
| CUMMINS | NT855 | 3017349 | 6 | 140 | 159 |
| CUMMINS | NT855 | 3017348 | 6 | 140 | 159.1 |
| CUMMINS | NT855 | 3048808 | 6 | 140 | 159.7 |
| CUMMINS | NT855 | 3253953 | 6 | 140 | 159.5 |
| CUMMINS | NT855 | 3051557 | 6 | 140 | 159.7 |
| CUMMINS | NT855 | 3095739 | 6 | 140 | 159.5 |
| S6K | | 6 | 102 | 97.7 |
| IW6757 | | 6 | 120.6 | 130 |
| XIW6757-8N3102 | 8N3102 | 6 | 120.6 | 130 |
| 8N3182 | | 6 | 120.6 | 130 |
| 68C | 9Y7212 | 6 | 137 | 136.9 |
| 68E | 9Y4004 | 6 | 137 | 136.9 |
| DEUTZ | FL413 | | 8 | 125 | 138.58 |
| DEUTZ | 1013ECP | | 6 | | |
| MAZAD | K2400 | | 4 | | |
| MAZAD | K2700 | | 4 | | |
| MAZAD | SL-BD17B | | 4 | | |
| HUUNDIA | 4D55 | | | 91.1 | 76 |
| HUUNDIA | 4D56 | | | 91.1 | 88.5 |
| HUUNDIA | 4D32 | 23411-41210 | 4 | 104 | 110.8 |
| HUUNDIA | 4D31T | 23411-41410 | 4 | 100 | 110.5 |
| HUUNDIA | 6D16 | 23411-93400 | 6 | 118 | 116.3 |
| HUUNDIA | 6D16T | 23422-93400 | 6 | 118 | 116.3 |
| DAEWOO | DB58 | | 6 | 102 | 98.1 |
| DAEWOO | DB58T | | 6 | 102 | 98.1 |
| DAEWOO | D1146 | | 6 | 111 | 121.3 |
| DAEWOO | D1146T | | 6 | 111 | 121.3 |
| DAEWOO | D2366 | | 6 | 123 | 136 |
| DAEWOO | D2366T | | 6 | 123 | 136 |
1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.
2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some
manufacturers.
3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.
4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.
5.How to buy with you?
You can use "Chat now!" or email to us.
6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.
7.If out of stock, how much time do you need to transfer from
factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan
if out of stock.
8.What information should I let you know if I want to get a
quotation?
To get an accurate quotation, please let us know the exact part
name, quantity, quality level and trade terms like EXW, FOB and so
on. More details provided will help.

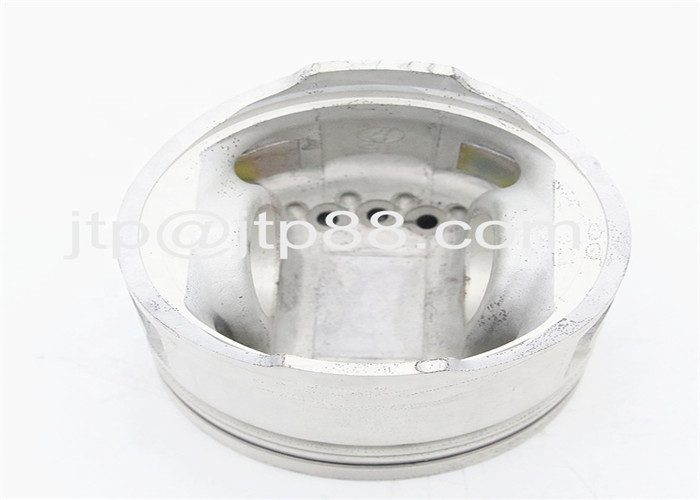

ENGINE PISTON PICTURE AS BELOW:
