Excavator Diesel Engine spare parts 4D32T Cylinder Liner ME013366
ME012900
SPECIFIION:
ENGINE TYPES | engine cylinder liner kit | Warranty | 6 Months |
Trade Terms | FOB CIF | Unit Weight | |
Material | Aluminium Alloy ,Carbon steel, Stainless Steel, Alloy Steel,Heat
resistance steel, Brass,Aluminium Etc, |
Appliion | Automotive,Mining,Railway,Marine,Construction equipments, |
Certifie | ISO9001:2008;ISO/TS16949:2009 |
| |
ADVANTAGE:
1. High quality and competitive price.
2. Long life span, good sales-after service.
3. 100% new, strict inspection & test.
4. Standard export packing.
5. One year quality warranty.
6. Have strong stock, small order is acceptable
7. Various kinds are selectable with different car models.
8. Improve power and increase torque
9. Improve fuel economy and reduce fuel consumption
10. Reduce waste emissions and reduce environmental pollution
CYLINDER LINER TECHNOLOGY:
WET CYLINDER:
The loion bores and particularly the running surfaces in the cylinder block must be cleaned carefully and they must
be undamaged. Corroded surfaces must be reworked (used flange liners and outer diameter oversize liners). As this is
done, make sure that the liners moves in easily and that they take up the correct
position (the projecting length of the
liner must be in accordance with the regulations of the engine manufacture). After the liner has been installed with the
seat rings that belong to it.
(use slip agent), the cylinder diameter is to be checked
particularly in the region of seal rings so as to determine whether
any deformation has been caused by pinched sealing rings. Using the wrong sealing rings (wrong diameter/ wrong
materials) can a narrowing of the cylinder which can lead to engine damage.The
cooling system should be pressure
tested after the liners have been installed so as to determine whether there is any leakage before the engine is
started.
SEMI-FINISHED CYLINDER LINER:
The surface which supports the flange must be vertical to the loion
bore and it must be sufficiently and evenly beveled. If the
liner flange is unevenly supported it can tear off. After the
installation of the liner, which is only semi-finished in its
inside
diameter, this cylinder boring is finely bored and then finished by
honing until it has the specified dimensions or, in the box of
finely bored liner.It is only finished by honing (tolerance
accordingly to DIN ISO H5). The surface of the liner must be flush
to the
sealing surface of the cylinder block, if necessary,the block
surface and the liner must be finished by surface grinding.
FINISHED CYLINDER LINER:
Before the liner is installed, the loion bore in the cylinder block
must be cleaned carefully and must be checked to
ensure the accuracy of the dimensions and to determine whether any distortion has occurred. Out of center or
damaged
bores can be reworked for the installation of oversize liners. It is
important for this that the loing bore is cylindrical, as
this is what determines the geometrical shape of the inside of the pressed in, thin walled liner.
AIR COOLING CYLINDER LINER:
5)In accordance with the instructions from the engine manufacture,
cast iron cylinders or light alloy cylinders are used.
Light alloy cylinders are separated into several groups due to the small installation clearance in the standard cylinder
dimensions.
OUR EXHIBITION:
| Packaging | Carcon box, wooden box, or as customers' requirements |
| Shiping way | by express, by air,by sea |
| Principle | for small order, we can only accept 100% in asvance |
| substanitial order 50% advanced payment can be accepted |
| shipping at any port in China, depends on negotiation |
| Production time | after receiving the payment(usually takes 3 days),we prepare the
goods for you |
| Delivery time | depends on the shipping way |
ADVANED PROCESSING TECHNOLOGY:
Our factory processing centers are adopted in the major process,
with high processing precision and stable size; Inner circle honing
use the texture standards for the advanced platform honing
technology
PRODUCTION FACILITIES:
1. IF melting furnace system
2. Insulation casting furnace system
3. Automatic casting line
4. Shot blasting machine
5. Fully automatic cutting line
Automatic casting and processing
DESTRIPTION:
A series of engine models for MITSUBISHI Cylinder liner as below,
there are many models not include in this sheet, pls also feel free
enquiry from us.
| MITSUBISHI | 4DQ5 | 30607-50301 | 4 | 83.0(SF) 84.0(FF) | 162 | |
| MITSUBISHI | 4D55/4D56 | MD050430 MD103648-9 | 4 | 90.1(SF) 91.1(FF) | 164.5 | |
| MITSUBISHI | 4D55(N) | 21131-42000 | 4 | 90.0(SF) | 167 | |
| MITSUBISHI | 4DR5/6DR5 | 31607-02202 31607-02101-2 | 4/6 | 91.0(SF) 92.0(FF) | 176 | |
| MITSUBISHI | S4S/S6S | | 4/6 | 93.0(SF) | 190 | |
| MITSUBISHI | 4M40T | | 4 | 94.0(SF) | 160 | |
| MITSUBISHI | 4M40 | | 4 | 95.0(FF) | 186 | |
| MITSUBISHI | 4DR7 | | 4 | 94.0(SF) 95.0(FF) | 186 | |
| MITSUBISHI | 4D30 | ME011513 | 4 | 99.0(SF) 100.0(FF) | 196.5 | |
| MITSUBISHI | 4D31 | ME011604-6 | 4 | 99.0(SF) 100.0(FF) | 191.5 | |
| MITSUBISHI | 4D31T | 21131-41200 | 4 | 99.0(SF) | 192 | |
| MITSUBISHI | S4K/S6K | 34307-00501 | 4/6 | 101.0(SF) 102.0(FF) | 195 | |
| MITSUBISHI | 4D32/4D34 | ME012900 ME013366-7 | 4 | 103.0(SF) 104.0(FF) | 197.5 | |
| MITSUBISHI | 4D32T | 21131-41300 | 4 | 103.0(SF) | 192 | |
| MITSUBISHI | 4D32(N) | ME031502-4 | 4 | 103.0(SF) 104.0(FF) | 192 | |
| MITSUBISHI | 4D33 | ME013333 | 4 | 107.0(SF) 108.0(FF) | 197 | |
| MITSUBISHI | 6D15-3AT | ME071090 | 6 | 113.0(FF) | 206 | PF |
| MITSUBISHI | 6D16 | ME071224 | 6 | 118.0(FF) | 204 | PF |
| MITSUBISHI | 6D16(new) | ME041105-5 | 6 | 118.0(FF) | 206 | PF |
FAQ:
1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.
2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some
manufacturers.
3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.
4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.
5.How to buy with you?
You can use "Chat now!" or email to us.
6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.
7.If out of stock, how much time do you need to transfer from
factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan
if out of stock.
8.What information should I let you know if I want to get a
quotation?
To get an accurate quotation, please let us know the exact part
name, quantity, quality level and trade terms like EXW, FOB and so
on. More details provided will help.

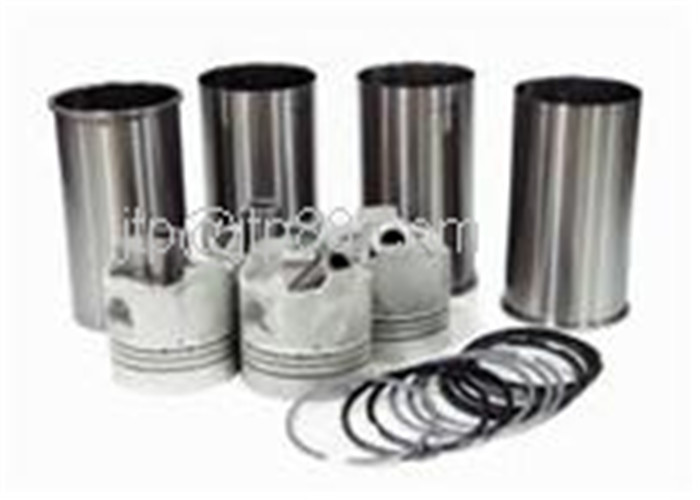

CYLINDER LINER PICTURE AS BELOW:
